Robotic Telescope Control
Granby Ridge robotic telescope control system provides remote access to all
telescope peripherals including focusers, heaters, temp sensors, cameras,

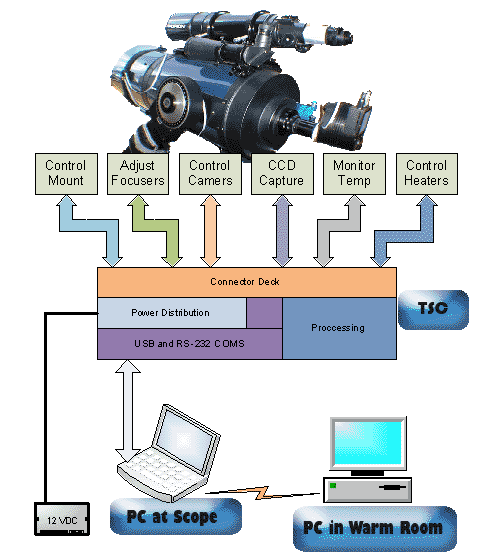

rs-232 devices and mount control. Core functions are controlled by the CPU
driven Telescope Super Controller (TSC). The TSC provides connectivity and
communications to all devices at the mount via a single data connection. In
conjunction with auxiliary sensors and OTA thermal stabilization
accessories. Portable or fixed mounts may be reliably operated from local or
a remote locations.

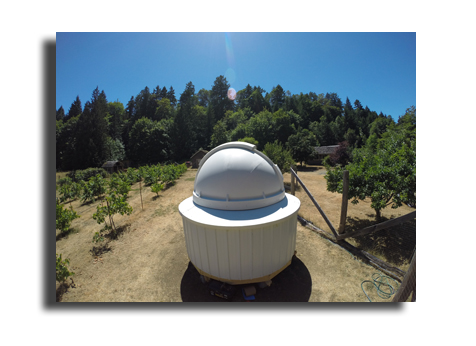

Granby Ridge Robotic Observatory
 |
|
Dome Environmental Manager

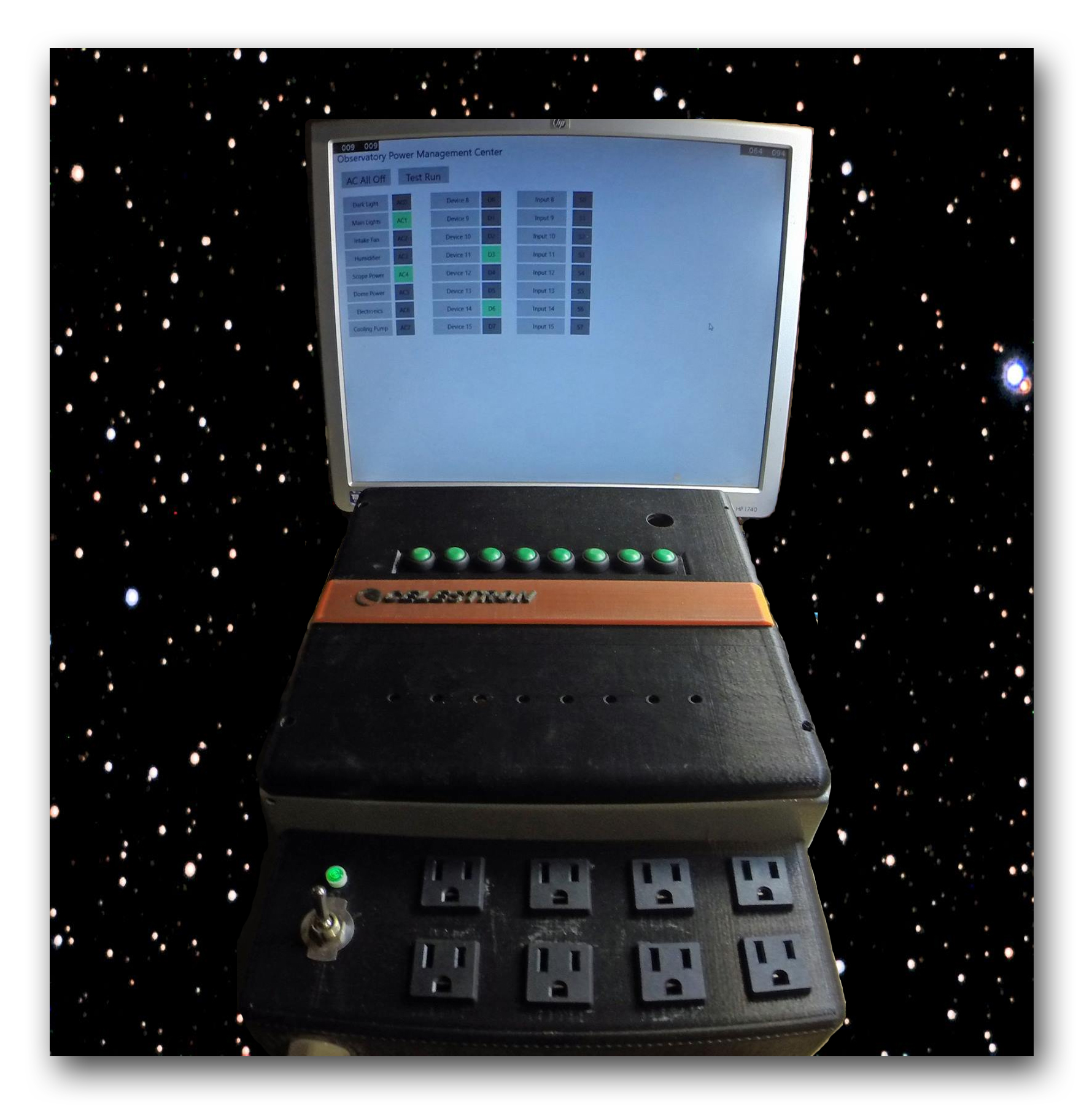

Environment controller for remote astronomical observatory. Controls
humidity, temperature, dome management, power distribution, ventilation,
safety systems and lighting.

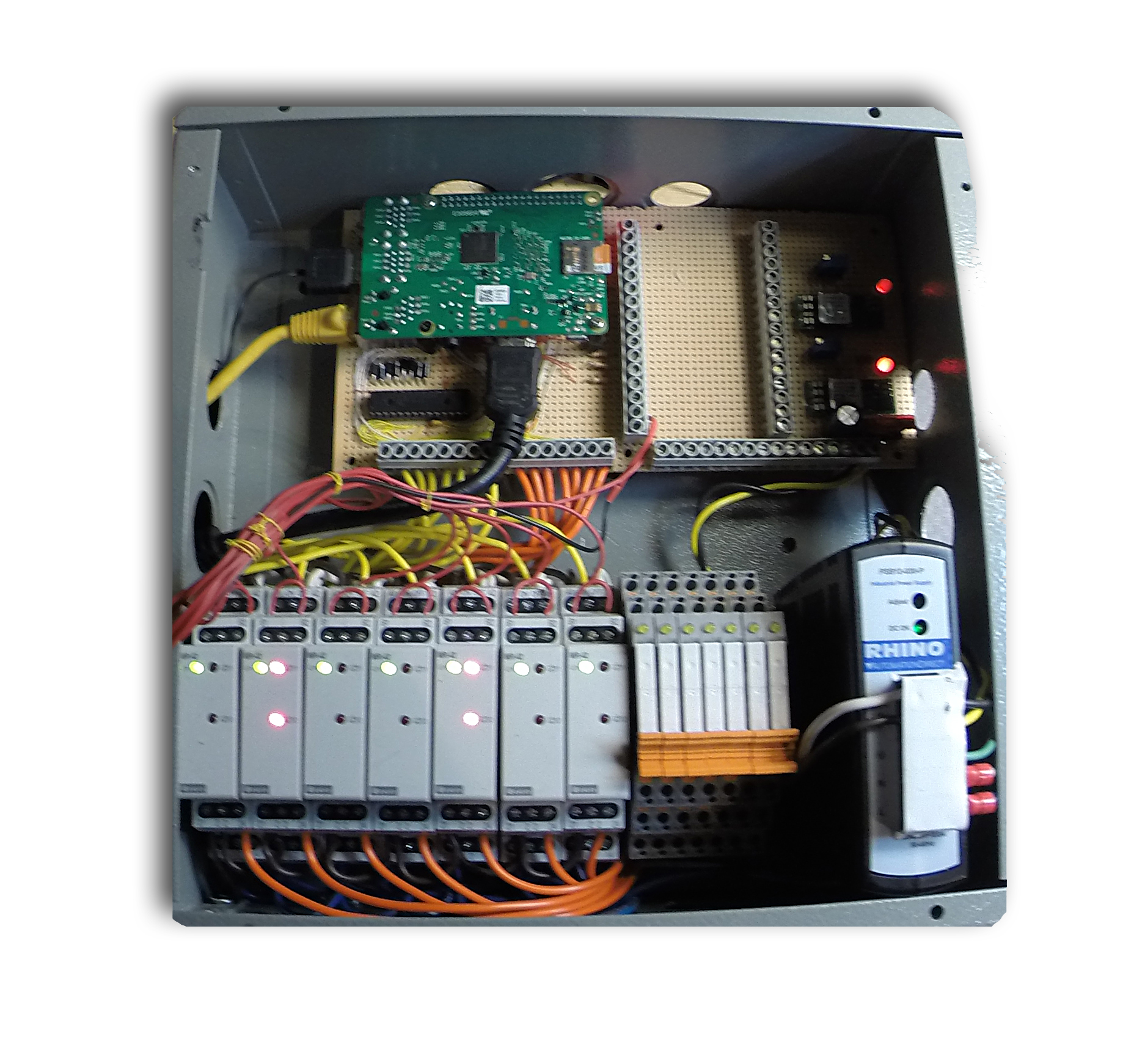

RPi3 prototype with GPIO expander, termination connectors and duel DC to DC
converters. Housed in 3D printed hinged case
 |
 |
Controller provides
8 x
115v AC devices
8 x analog sensors
8 x digital sensors
8 x
alternate relay controlled device outputs.
|
|

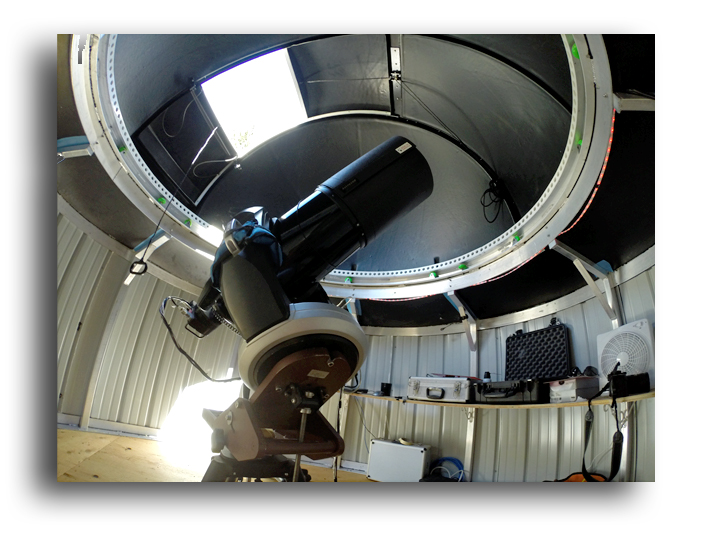

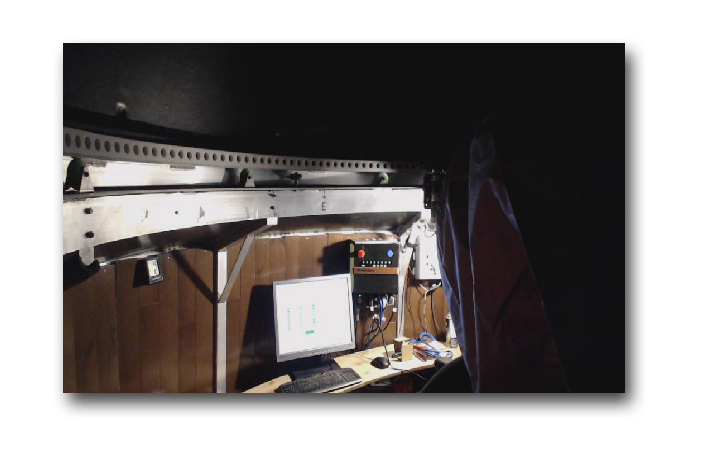

Installed in observatory dome.
Outside temp = -4c,Relative humidity = 89%
Inside temp =
10c, 40% RH (storage mode). |
|
|
Pictures taken at Granby Ridge Observatory
|
